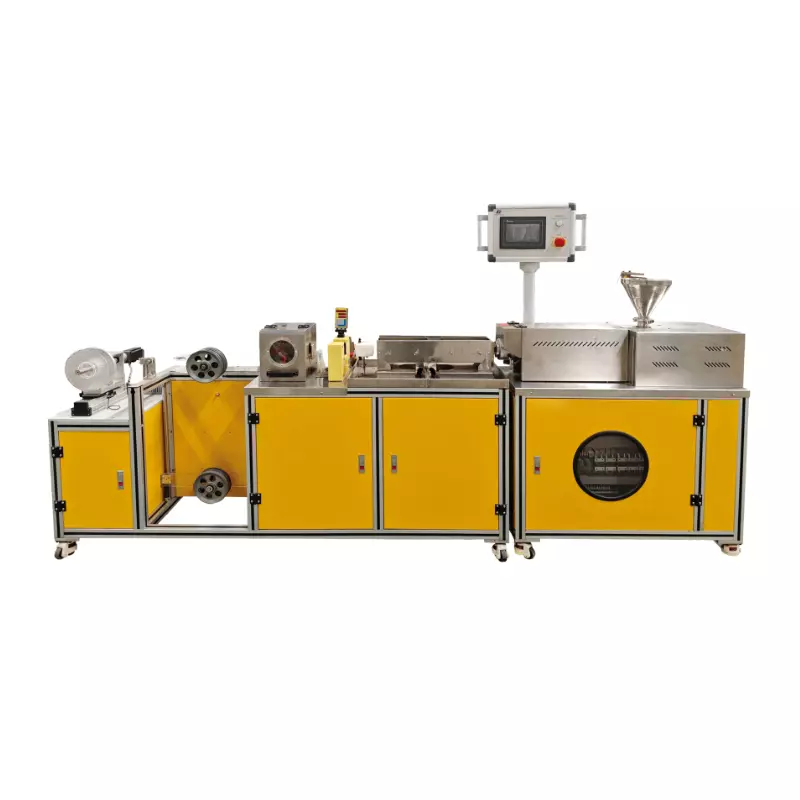

3D Printing Filament Testing Machine

Core advantage

One-stop workflow: Integrating feeding, extrusion, cooling, winding and real-time monitoring into one, there is no need to transfer materials between different devices, avoiding secondary pollution and errors.

Data-driven R&D: Equipped with high-precision sensors, it collects and presents key process data (such as melt pressure, temperature, and diameter) in real time, providing quantitative basis for optimizing formulas and processes.

Unparalleled flexibility: The modular design enables users to quickly replace components such as screws, die heads, and cooling tanks, easily handling a wide range of materials from general-purpose plastics to high-performance engineering plastics and even special composite materials.

Outstanding stability: Utilizing precision servo motors and industrial-grade PID temperature control systems, it ensures an extremely stable extrusion process, guaranteeing the high repeatability and reliability of experimental data.

Detailed technical specifications

1. Extrusion system

Screw diameter: Optional φ12mm, φ16mm, φ20mm (standard configuration is φ16mm)

Length-to-diameter ratio (L/D) : 25:1 (Optimized for plastic melting and homogenization)

Heating zone: 4-zone independent PID temperature control

Maximum heating temperature: 450°C

Temperature control accuracy: ±0.5°C

Maximum extrusion capacity: ~2 kg/h (varies by material)

2. Feeding system

Type: Double-roller independent servo-driven feeding machine

Compatible particle format: Suitable for standard-sized plastic particles (customizable to fit powder or recycled fragments)

Hopper capacity: 3L (Vacuum drying hopper optional)

3. Pull bars and cooling system

Cooling method: Temperature-controlled circulating water tank with liquid level and temperature control

Traction machine: Double-track servo traction machine, stepless speed regulation, and linked with the extruder

Wire diameter measurement: Integrated laser diameter gauge, real-time monitoring of filament diameter and display of OVD (Diameter Deviation) curve

4. Winding system

Winding method: Torque motor or servo winding, adjustable wire tension

Standard spools: Compatible with 1kg spools (can be adapted to other sizes)

Winding neatness: A wire strainer can be equipped to ensure neat winding

5. Control system and software

Control interface: 7-inch color touch screen (HMI)

Data recording: Real-time drawing and recording of key data curves such as temperature, pressure, motor load, and wire diameter, supporting CSV format export

Formula Management: Successful process parameter formulas can be saved and called up

Connectivity: USB interface, optional Ethernet remote monitoring

6. Machinery and Electrical Engineering

Overall dimensions (L×W×H) : approximately 1500mm × 800mm × 1500mm

Power supply: 380V / 220V, 50/60Hz, 4kW

Material: The main body is made of industrial aluminum profiles, and the key components are stainless steel, ensuring a stable structure.

Target application

Consumables manufacturer: New formula development, incoming material inspection, product quality control, small-batch production of special wires.

Research institutes and universities: Materials science research, composite material development, research on the influence of process parameters on performance, student teaching and practice.

3D printing service providers and large manufacturing enterprises: internal consumable verification, customized special performance materials (such as color, conductivity, flexibility), and waste recycling and reuse experiments.
